Deploying Advanced PowerShell Registry Fixes via Hexnode UEM

Executive Summary

Deploying advanced registry modifications across a distributed Windows fleet via a Unified Endpoint Management (UEM) solution requires strict attention to execution contexts. While Hexnode efficiently deploys .ps1 scripts over-the-air, these scripts execute invisibly in the background, primarily under the SYSTEM context. This document outlines the mechanical and architectural nuances of executing PowerShell registry fixes through Hexnode, ensuring high-fidelity system configurations without endpoint disruption or silent redirection failures.

1. Architectural Nuances: The Hexnode Execution Context

Before pushing registry-altering scripts, administrators must account for how the Hexnode agent interfaces with the Windows OS. Scripts do not run in the interactive user space by default; they run headlessly.

Targeting the Correct Registry Hive

Because Hexnode typically executes as SYSTEM, direct modifications to certain registry hives will not behave as they would in a local, user-driven PowerShell session.

2. The 32-Bit / 64-Bit Redirection Challenge

One of the most common points of failure in UEM registry deployments is Windows architecture redirection. By default, MDM agents often spawn a 32-bit PowerShell session. If you attempt to modify a 64-bit registry path (e.g., HKLM:\SOFTWARE), Windows OS architecture will silently redirect your changes to the WOW6432Node path. This results in a “successful” script execution in Hexnode, but a failed registry fix on the target application.

The Fix: Forcing a 64-Bit Context

To bypass this limitation, force your .ps1 script to relaunch in the native 64-bit environment using the following script.

3. Mechanics & Scripting Best Practices

A robust UEM registry script must be idempotent (safe to run multiple times without breaking configurations) and feature highly descriptive error handling.

• Idempotency & Path Checking: Always use Test-Path before generating a new registry key to prevent overwrite errors.
• Error Containment: Wrap your Set-ItemProperty and New-Item cmdlets in Try/Catch blocks. If an access violation or permission error occurs, the script fails gracefully instead of hanging.
• Verbose Standard Output: Because Hexnode runs the script silently, utilize Write-Output for every logical step. Hexnode captures this standard output, making remote troubleshooting viable.

Example Production-Ready Structure:

4. Deployment Strategy: Step-by-Step Execution Pipeline

To maintain version control and ensure reliable delivery, follow Hexnode’s official deployment pipeline for custom scripts.

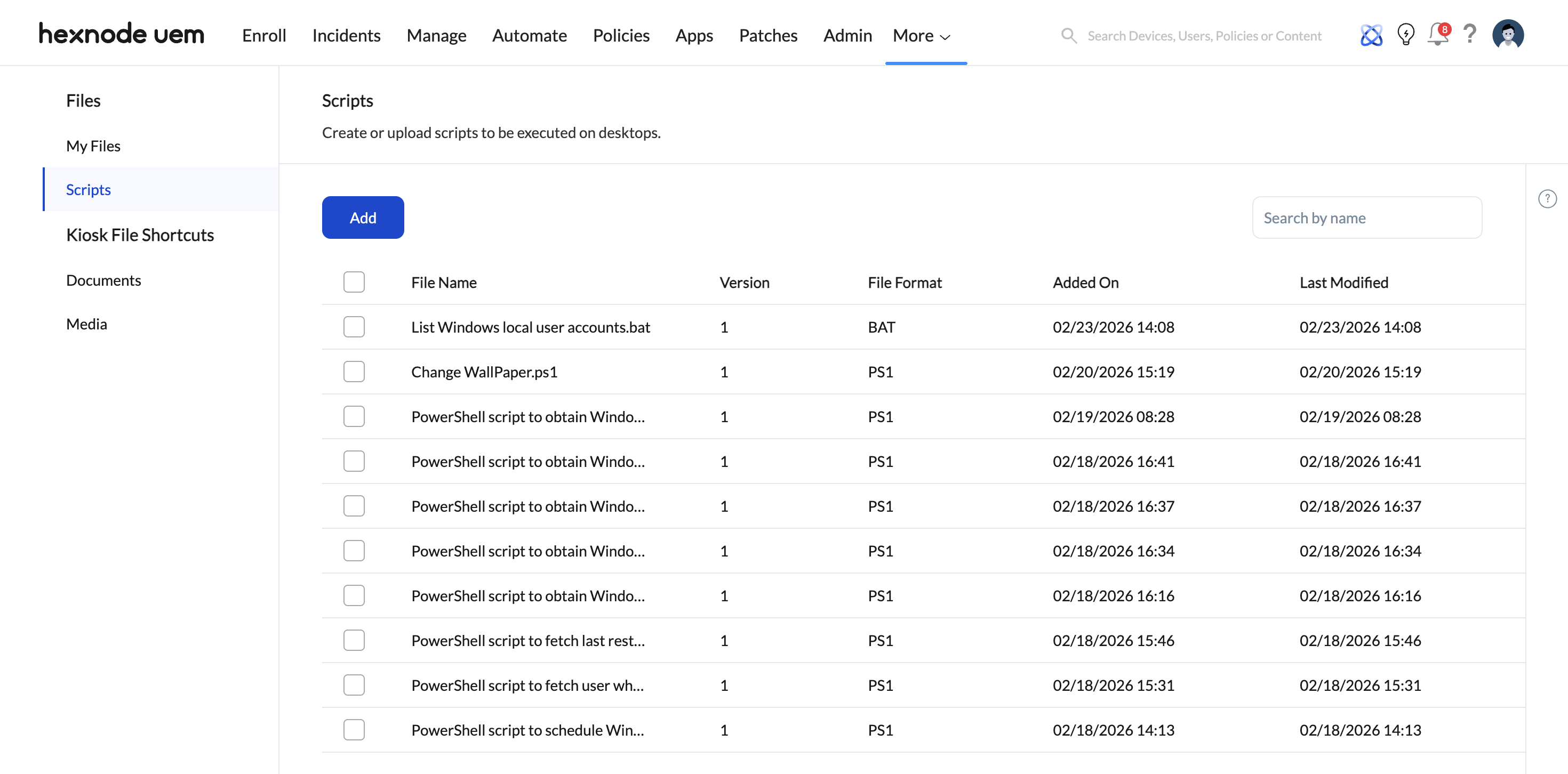

Phase A: Uploading to the Hexnode Repository

Centralizing scripts prevents version mismatching across different administrator accounts.

1. Log in to the Hexnode UEM portal.
2. Navigate to the Content tab on the top menu.
3. Select My Files from the left pane and click Add.

4. Upload your tested .ps1 file. (Note: Ensure the filename contains absolutely no special characters like / : ? \ * | “ [ ] @ ! % ^ #, as these can cause database parsing errors).
5. Click Save.

Phase B: Deploying to the Fleet

1. Navigate to Manage > Devices.
2. Select the target Windows endpoints (PCs or tablets) requiring the registry modification.
3. Click on Actions > Others > Execute Custom Script.
4. Select Windows as the platform.
5. Under Script File Source, choose Hexnode repository and select your uploaded .ps1 file.
6. Configure the Timeout Parameter: Hexnode enforces a default timeout of 30 minutes (minimum 15 minutes). For lightweight registry edits, this is more than sufficient. If the script hangs—often due to a blocking UI element or prompt—the Hexnode agent will forcefully terminate it once this limit is reached.
7. Click Execute.

5. Auditing, Verification, and Troubleshooting

Because registry changes can critically alter application behavior and system stability, post-deployment auditing is non-negotiable.

Verification Workflow

• Action History Review: Navigate to Manage > Devices > [Device Name] > Action History.
• Check Status: Locate the specific “Execute Custom Script” action. Ensure it has moved from In Progress to Success.
• Validate the Output: Click Show Output. You should see the exact Write-Output telemetry stringed into your Try/Catch blocks. This confirms whether the target key was written or if an unexpected OS-level restriction blocked the action.

Common Troubleshooting Nuances

• Script Stuck ‘In Progress’: This typically implies the script is attempting to interact with the UI, which background execution blocks. Ensure all cmdlets are entirely silent (e.g., piping outputs to Out-Null).
• Execution Abruptly Terminated: Ensure the endpoint is awake, connected to the network, and that Hexnode agent background processes are allowlisted in the endpoint’s EDR/Antivirus solution.
