Configuring Custom Technician Roles

You can have your Hexnode MDM portal managed by multiple admins. The user who signs up for the portal is the Super Admin. You can then add multiple technicians. Each new technician can be assigned any of these roles – Admin, Reports Manager, or Apps and Reports Manager.

  • Admin: Admins have full privileges, and access to all the features in the portal.
  • Reports Manager: Reports managers can access only the dashboard, Reports tab and the features in there.
  • Apps and Reports Manager: Apps and Reports managers have access to the features in both the Apps and Reports tabs. They can also view the dashboard.
Notes:

  • Hexnode UEM restricts the technician to only log in on a single machine or browser at a time.
  • If a technician proceeds to log in to the Hexnode portal that is already logged in from a different browser or machine, the technician will be prompted to log in by terminating the currently active session on the portal.
    concurrent login for a single technician in hexnode

Create technicians in Hexnode UEM

To create a technician,

  1. On your Hexnode MDM console, navigate to Admin > Technicians and Roles.
  2. Click on Add Technician.
  3. Enter the first and last name of the technician.
  4. Enter the Username/Email of the technician. If you are enabling SSO (Single Sign On) for the technician, the username should match the email address of the user.
  5. Enter the Phone number of the technician.
  6. Specify the name of the organization where the technician belongs.
  7. Choose a specific technician role: Admin, Reports Manager, or Apps and Reports Manager.
  8. If required, enable SSO login via Google, Microsoft, or Okta for the technician. Technician sign in with local credentials is enabled by default.
    Note:

    • SSO login via Google, Microsoft, or Okta can only be enabled if the corresponding option is enabled in the Global SSO Login Settings.
    • For technician SSO via Okta, the Okta domain that houses the technician should be integrated with Hexnode.

  9. Verify with CAPTCHA after ___ failed login attempts: Choose the maximum failed login attempts for a technician, after which CAPTCHA will be enabled. It can take values between 1 and 10. By default, the set value is three.
  10. Mandate Two Factor Authentication: Enabling this option would initiate log in via a two-step verification process. The first step involves the technician signing in with local or directory password. The second step is to enter a verification code sent to the technician or provided by third-party authenticator apps. This option is enabled by default.
  11. Send Verification Code via: Select Email or Text message as the method via which the technician will receive the verification code for sign in.
    Notes:

    1. The verification code sent to the email address, or phone number is valid for a duration of 3 minutes. After the 3 minutes, or if it is already used, a new verification code should be sent to enable login to the portal.
    2. Ensure to configure SMS Settings on your portal, to enable technician login using OTP via SMS.

  12. Ask this user to set up Third Party Authenticator: If enabled, the technician can only sign in to their portal by verifying the time-based code shown in the Microsoft Authenticator or Google Authenticator app. You can even login via the recovery codes if you do not have access to the device on which the third-party app is set up. Recovery codes are obtained while setting up the third-party authenticator app. Note that a recovery code can only be used once to log in.
    Notes:


    If both email/SMS verification code and third-party authenticator app is set up for a technician, he will be asked to enter the code generated by the authenticator app or one of the recovery codes generated while setting up the app and not the verification code sent as email or text message. However, if you want to login via the time-based verification code sent to as an email or text message, click on Try another way in the pop-up wizard shown during the technician authentication.

  13. Require code: Choose the time period after which the two-factor authentication will be mandated for technician sign in. The available options are Every time logging in, Every 7 days, and Every 30 days.
  14. Click Save.


This will send an email invitation link to the technician. The link will automatically expire in a day or if it is used. The technicians can activate the account by clicking on the Setup account in the email invitation. They will then be asked to set up signing in with Google, Microsoft, or Okta or to set a local password.

On enabling SSO login for technicians with Microsoft, Google and Okta authentication, the Hexnode UEM sign-in page will look like this.
SSO login enabled sign in

Notes:

  • If the new technician tries to log in to the portal using Google, Microsoft or Okta authentication without setting up login via the email activation link, a message will be displayed asking them to set up signing in.
    Message displayed while signing in without setting up the Google account
  • If you log in to your Hexnode account via Okta, you will be asked to enter your email on clicking on Sign in with Okta. Enter the email and click on Submit; this will redirect you to the Okta sign-in page to authenticate your Okta credentials. Sign in to Hexnode via Okta

Global SSO Login Settings

SSO login settings can be applied globally to all the technicians using the Global SSO Login Settings.

  1. On your Hexnode MDM portal, head on to Admin > Technicians and Roles.
  2. Enable Google, Microsoft, or Okta and as the Allowed SSO logins under Global SSO Login Settings. Technician sign in with local credentials is allowed by default.
  3. Click on Save.

Global CAPTCHA Settings

Global CAPTCHA settings can be applied globally to all the technicians within the portal.

  1. Login to Hexnode portal.
  2. Navigate to Admin > Technicians and Roles.
  3. Under Global CAPTCHA Settings, provide the maximum failed login attempts after which CAPTCHA will be enabled. It can take values between 1 and 10.
  4. Click on Save.
Note:


The CAPTCHA trigger limit will be the least value of the global and individual CAPTCHA limits, if both are configured.

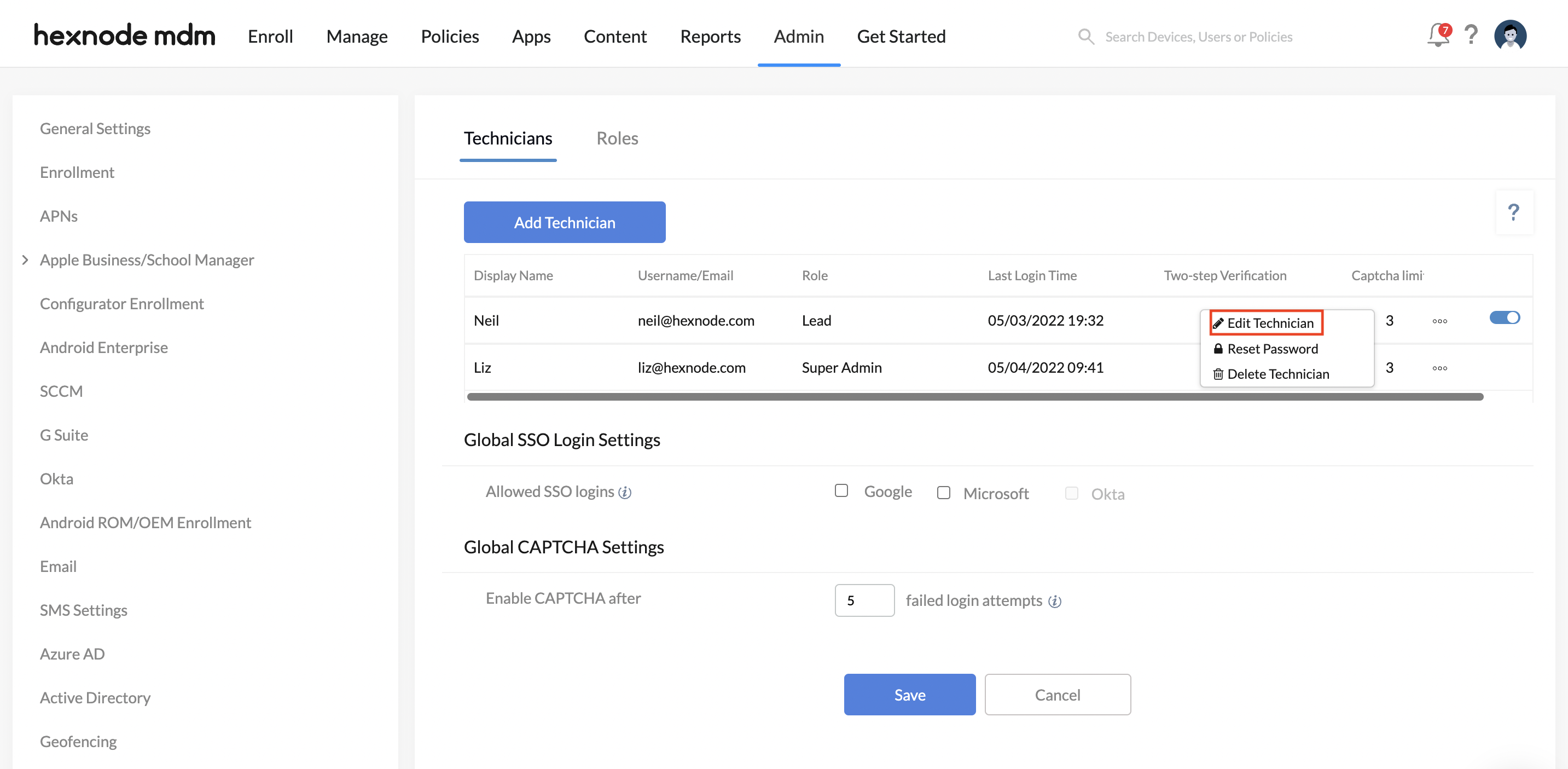

Edit Technician

For an admin or super admin to edit the details of a technician,

  1. Go to Admin > Technicians.
  2. Click on the more icon and select Edit Technician corresponding to the technician you want to edit.
  3. Click on Edit Information on the My profile page.
  4. You can change the first and last name, Username/Email, Phone number.

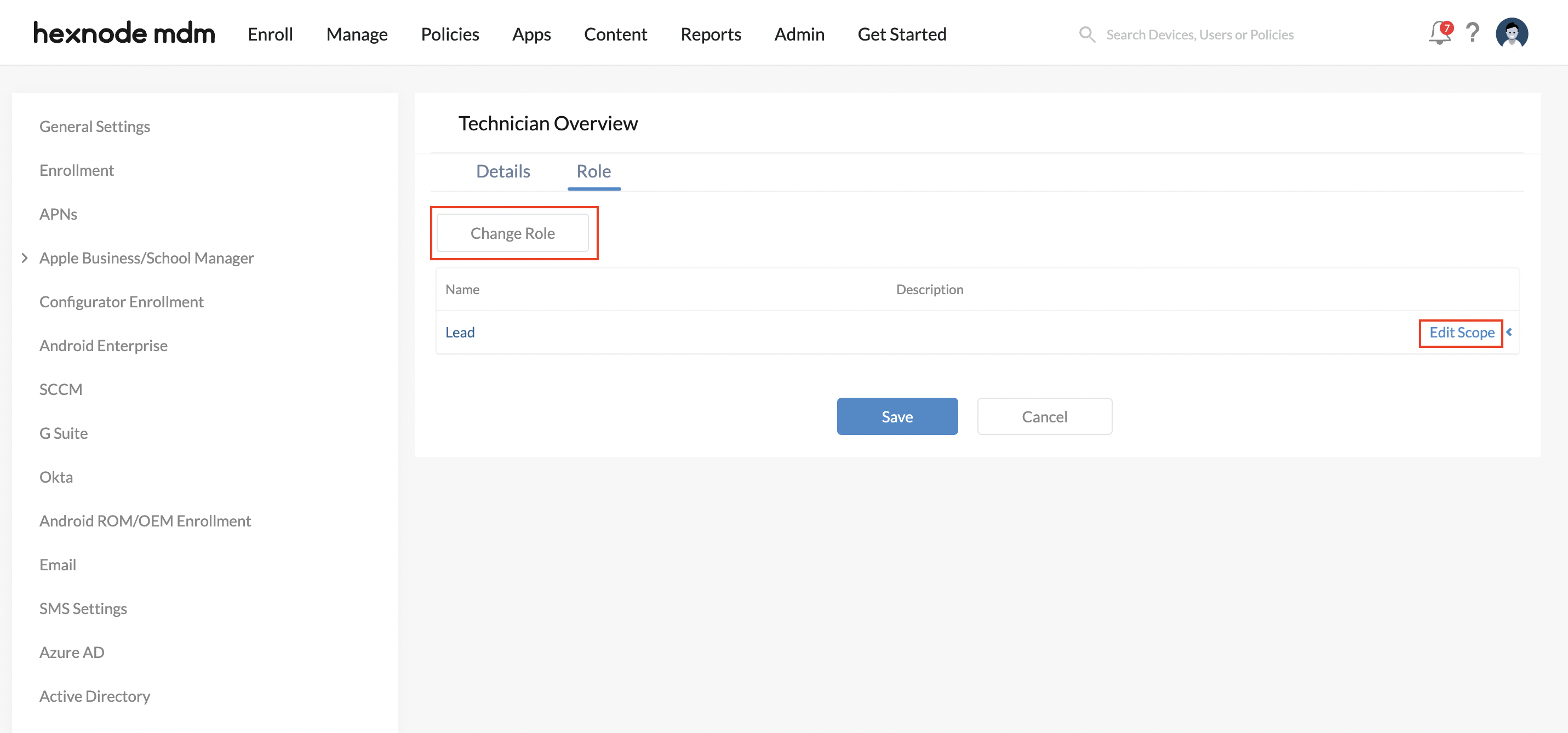

  5. Alter the Role of the other technicians if you want. But an Admin cannot change his own role. The role of the Super Admin cannot be changed.
  6. If the technician is editing his own details, he can add an image as his profile image. The supported file formats are jpeg, png, svg, bmp, and jps.
  7. You can edit the allowed SSO login option for the technician if required. If the login method previously set up for the technician is disabled, he will need to set up SSO login again or use the local credentials to log in. An email correspondence with an SSO reset link will be automatically sent to the technician, if this option is enabled.
  8. If a technician wants to reset his own local password, use the Change Password option. The technician will be asked to enter the old password, configure and verify the new password.
  9. You can also change the maximum failed login attempts before enabling CAPTCHA, if required.
  10. You can also edit the two-factor authentication (2FA) settings like
    1. Enabling/disabling two-factor authentication.
    2. Update the methods via which the verification code has to be sent.
    3. Enforce/relax setting up the third-party authenticator app.
    4. The frequency at which the technician will be forced to authenticate via a second factor for logging in.
  11. If you have already set up the authenticator app in an old or lost phone, you can reconfigure the app on a new device by clicking on Reconfigure Authenticator App. A new QR Code will be displayed on the screen via which the technician can set up the authentication app on a new device.
  12. Click Save.


Note:

  • An admin cannot change his own Username/Email, organization name, Role, SSO login methods and the 2FA settings that are previously enabled. However, an admin can reconfigure the authenticator app by self-editing his details, if their phone is lost or is changed.
  • A super admin is restricted from only changing his own Role.
  • If the Username/Email of a technician is changed, they will be immediately logged out and will be asked to reconfigure the authenticator app as it is linked to the previous email.

Two Factor Authentication

The second authentication factor for technician login into Hexnode can either be a time-based email/SMS OTP or a verification code generated by a third-party authenticator app. Microsoft Authenticator or Google Authenticator can be employed as the third-party app that provides a verification code for safe login.

To enable 2FA for a technician, check Mandate Two Factor Authentication while creating the technician or check Enable Two Factor Authentication while editing the technician details.

To set up the authenticator app for 2FA, install the Google Authenticator or Microsoft Authenticator app on your device.

If the technician is setting up the portal for the first time,

  1. Navigate to your Hexnode portal and log in with the local/SSO account credentials.
  2. Open the authenticator app on your device and scan the QR code shown or enter the code displayed on the login page.
  3. Enter the verification code generated by the app on the portal for successful app set up.

If the authenticator app is already configured. But you want to reconfigure the app on another device,

  1. Log into your Hexnode portal.
  2. Click on your profile picture on the top right corner of the page.
  3. Click on My Profile > Edit Information.
  4. Click on Reconfigure Authenticator App. Open the app and scan the QR Code or enter the code displayed on the Hexnode MDM portal.
  5. Enter the verification code generated by the app on the portal and click Save.

Resend account activation link

For an admin or super admin to resend the account activation link of another technician,

  1. Go to Admin > Technicians.
  2. Click on the more icon and select Resend account activation link corresponding to the required user.

This will resend the activation link to the technician’s email account. This option will not be available once the technician sets up his Hexnode account.

Reset Password

If a super admin or admin wants to reset the password of another technician,

  1. Go to Admin > Technicians.
  2. Click on the more icon and select Reset Password corresponding to the technician whose password you want to reset.
  3. Click on Proceed.


A password reset link will be sent to the technician at the specified email ID. The email will expire in a day. The technician has to set up a new password using this link to sign in. The technician will be blocked from logging in to the portal until he sets up a new password using the password reset link.

Note:


This option will not be available for a technician who has not set up his login.

Reset SSO

A super admin and an admin can reset his own or other technicians SSO accounts using this option.

  1. Go to Admin > Technicians.
  2. Click on the more icon and select Reset SSO corresponding to the required technician.
  3. A confirmation dialog box stating that an email will be sent to the technicians to reset the SSO account will be displayed. Click on Yes.
  4. Complete the user authentication to confirm the process.

Delete Technician

If an admin or a super admin want to delete a technician,

  1. Go to Admin > Technicians.
  2. Click on the more icon and select Delete Technician corresponding to the technician name.
  3. Click on Yes.
  4. Complete the user authentication and confirm the deletion process.
Warning:


Suppose an SSO logged in technician has disabled the pop-up notification for the Hexnode MDM portal on the device browser, the Hexnode actions that enforces technician authentication, cannot be completed.

For authentication, technicians must be redirected to the Google/Microsoft/Okta authentication page in a new tab. This will be blocked if you have disabled pop-up notifications for the Hexnode portal. So, actions like device wipe, edit technician, etc. that require technician authentication will be blocked.

Deactivate Technician

A technician can be deactivated without removing his account from the portal. An Admin can deactivate the account of other technicians except a Super Admin. To deactivate a technician:

  1. Go to Admin > Technicians and Roles.
  2. Among the list of technicians, disable the toggle button corresponding to the technician whose account is to be deactivated.
  3. Complete user authentication to confirm the deactivation process.

temporarily deactivate a technician

Note:


If the technician is having a current active session, he will receive a session expiry prompt once the account deactivation is initiated. Any further sign-in from the deactivated account raises an error message ‘User is inactive! Please contact your administrator’ on the log-in window.


A deactivated technician account can be activated by re-enabling the toggle button and completing the user authentication.

Different Technician Roles in Hexnode UEM

Super Admin

Super Admin has complete access over the portal and is an all-time active technician. They can edit, create, or delete other technicians. They can edit their own details but can’t change their role. They can also deactivate other active technicians. A Super Admin cannot be deleted or disabled. However, if you want to change the Super Admin, the Super Admin should login to the portal and should replace his Username/Email address with that of the new Super Admin.
Technician with super admin privileges

Admin

Admin can access all the tabs in the portal. He can deactivate, add, edit or create other technicians except Super Admin. Admin can also edit his own details but can’t change his role or delete himself.

Apps and Reports Manager

Apps and Reports manager can access both the Apps and Reports tabs as well as the dashboard. However, such technicians cannot access other tabs in Hexnode or control the features in there.

Reports Manager

Reports Manager can access only the Reports tab and the dashboard.

Limiting the number of technicians as per the pricing plan

The number of technician roles that can be configured depends on the pricing plan you have subscribed to.

For Express plan,

  • Only one technician is available. The technician will be assigned with the role of Super Admin.
  • More technicians can be added by purchasing additional technicians from the portal. The newly added technicians will be assigned with the role of Admin.
  • The CAPTCHA limit for failed technician login is set to the default value 3.
  • Includes two factor authentication for technician login.

For Pro plan,

  • Two technicians are available by default.
  • The primary technician is Super Admin, and the other technician is Admin. No other technician roles are available.
  • More technicians can be purchased from the portal. They will be assigned with the role of Admin.
  • The CAPTCHA limit for failed technician login is set to the default value 3.
  • Includes two factor authentication for technician login.

For Enterprise plan,

  • Three technicians are included in this pricing plan.
  • The primary technician is Super Admin. Other technicians, including the additional technicians purchased from the portal, can be assigned with any of the roles, Admin, Reports Manager or, Apps and Reports Manager.
  • The CAPTCHA limit for failed technician login can be customized.
  • Includes two factor authentication for technician login.

For Ultimate plan,

  • There are four technicians included by default.
  • The primary technician is Super Admin. The other technicians, including the additional technicians purchased from the portal, can be assigned with any of the roles, Admin, Reports Manager or, Apps and Reports Manager.
  • The CAPTCHA limit for failed technician logins can be customized.
  • Includes two factor authentication for technician login.
  • Technician SSO login using Google, Microsoft and Okta is also included.

For Ultra plan,

  • Five technicians are available by default.
  • The primary technician is Super Admin. The other technicians, including the additional technicians purchased from the portal, can be assigned with any of the roles, Admin, Reports Manager or Apps and Reports Manager.
  • The CAPTCHA limit for failed technician logins can be customized.
  • Includes two factor authentication for technician login.
  • Technician SSO login using Google, Microsoft and Okta is also included.

When the number of active technicians reaches the maximum limit allocated to each plan, you have to either deactivate or delete any of the active technicians or upgrade your pricing plan to add new technicians. You can also purchase additional technicians, if and when required via the License tab in Admin.

Maximum technician limit attained

Note:

When you downgrade from a higher pricing plan to a lower one, not all technicians in the initial plan can be availed in the new plan unless the technician slots are additionally purchased. So, while downgrading the plan, additional technicians will get automatically added as the Add-ons in the subscription page. You should either deactivate or delete the technicians from there, if you do not wish to retain the additional technicians.
