How to configure Android Enterprise using G Suite

Android Enterprise is a program that creates a work container on your device, thus separating the work app/data from your personal app/data. Hexnode’s integration with G Suite further simplifies the Android Enterprise enrollment process.

You can integrate your organization’s G Suite account, thus facilitating the users/user groups in your G Suite domain to sync with Hexnode UEM.

To enable Android Enterprise enrollment using G Suite, your organization should create a service account with Google, and provide specific API access to apply the configurations to the managed devices.

To enroll your devices in Android Enterprise using G Suite,

  1. Enroll your organization in Android Enterprise using Google domain.
  2. Enroll devices either in Profile Owner or Device Owner mode.
  3. Apply configurations to the managed devices.
Notes:

  • Your Organization should have a G Suite Account.
  • This feature is available in all subscription plans except Express and Pro.

Enroll your organization in Android Enterprise using Google domain

To enroll your organization in Android Enterprise using G Suite domain, your organization requires a service account.

Create Service Account

Your organization requires a service account with Google to configure Android Enterprise using G Suite. Hexnode UEM uses this service account to push the Android Enterprise based configurations to the devices.

  1. Using the G Suite admin credential, login to Google Developers Console.
  2. Click on Create Project.
  3. Create a New Project by providing the following details.
    • Project Name: Provide a suitable project name and a corresponding project ID will be generated.
  4. From the Navigation Menu on the left pane, select APIs and Services > Credentials.
  5. Click on Create Credentials and from the drop-down list that appears select Service account.
  6. Select New service account and provide the following details.
    • Service account name: Provide a suitable name for the service account.
    • Service account ID: An account ID will be automatically generated. If required, you can edit it.
    • Service account description: Provide a suitable description for your service account.
    • Click on Create and Continue.
  7. Optional: Grant the service account access to the project created above. Select a role from the drop-down list. Click on Select a role. Choose Service Accounts > Service Account Admin, and click Continue.
  8. Click Done
  9. From Navigation menu > IAM & Admin > Service Accounts. Select your service account and click on Actions > Manage Details.
  10. Navigate to SHOW DOMAIN-WIDE DELEGATION. Select the checkbox Enable G Suite Domain-wide Delegation. Click Save.
  11. Copy the generated Client ID.
  12. Next, navigate to Keys. Click on Add Key > Create new key and choose the key type as JSON and click on Create.
  13. A JSON key will be downloaded. This key is later uploaded on to Hexnode MDM server.
  14. Go back to APIs & Services interface from the Navigation menu. Select Dashboard and click on +ENABLE APIS AND SERVICES.
  15. In the search box that appears, type Admin SDK API and select the same from the search results.
  16. Click on Enable to enable Admin SDK API.

Manage API Client Access for MDM

This process provides the MDM with a specific API access to apply Android Enterprise configurations to the managed devices. Ensure to Enable API access in the Admin console.

  1. Using your G Suite Admin credentials, log in to Google Admin Console and click on Security.
  2. From API Controls, click on MANAGE DOMAIN WIDE DELEGATION under Domain wide delegation, and click on +Add new.
  3. Authorize the API clients by providing the following details.
    • Client ID: Paste the Client ID copied from Google Developer Console.
    • OAuth scopes: Copy and paste the link https://www.googleapis.com/auth/admin.directory.user – To sync individual users.
    • https://www.googleapis.com/auth/admin.directory.group – To sync user groups.
    • https://www.googleapis.com/auth/admin.directory.domain – To fetch the domain.
    • Click on AUTHORIZE.
  4. Note:

    • To sync user groups from your G Suite account to Hexnode console, you need to provide both the URLs separated by comma.
    • The directory domain scope
      https://www.googleapis.com/auth/admin.directory.domain is mandatory. If this scope is not entered, the domain sync will fail and an error message “G Suite domain names could not be retrieved.” will be displayed in the portal.

  5. Navigate to Devices > Mobile & endpoints > Settings > Third-party integrations > Android EMM.
  6. Click on Add EMM providers.
  7. Under Token Generator, click on GENERATE TOKEN and copy the token.

Integration of G Suite with Hexnode MDM Server

  1. Login to your Hexnode MDM portal.
  2. Navigate to Enroll > Platform – Specific > Android > Android Enterprise.
  3. Select Enrollment type as Google Domain.
  4. Click on Configure G Suite.
    You will have the following options to configure.
    • G Suite Admin Email: Enter the G Suite admin email address of the domain that you want to synchronize with Hexnode.
    • G Suite key(.json): Upload the JSON key previously downloaded.
  5. Click on Next to configure G Suite.
  6. Now, 2 new options will be displayed:
    • Sync across all domains: Checking this option will sync all the users and/or user groups across all domains. When new domains are created in G Suite, they will be automatically synced during the next sync.
    • Choose Domain(s): Only the users and/or user groups present in the selected domains will be synced with Hexnode UEM.
  7. Click on the Save button to save the configuration.
  8. Provide the Token and click on Enroll.
  • Token: Paste the EMM token generated from Google Admin Console.

Integration is automatically completed when the details are provided.

Notes:

  • You can verify whether the integration is completed or not from the Google Admin Console.
  • Go to Devices > Mobile & endpoints > Settings > Third-party Integrations > Android EMM > Manage EMM providers.
  • If the binding is successful, your EMM provider will be listed there.
  • The G Suite sync will be initiated once in a week.
  • Click on the Refresh Domains button if a newly added domain is not displayed in the portal.


Once your organization is configured, you can start Enrolling Devices in Android Enterprise using G Suite.

Removing EMM provider from Google Admin Console

Businesses can remove the integrated EMM provider to disenroll the Android Enterprise program directly from the Google Admin Console. To unbind the EMM provider:

  1. Sign in to Google Admin Console.

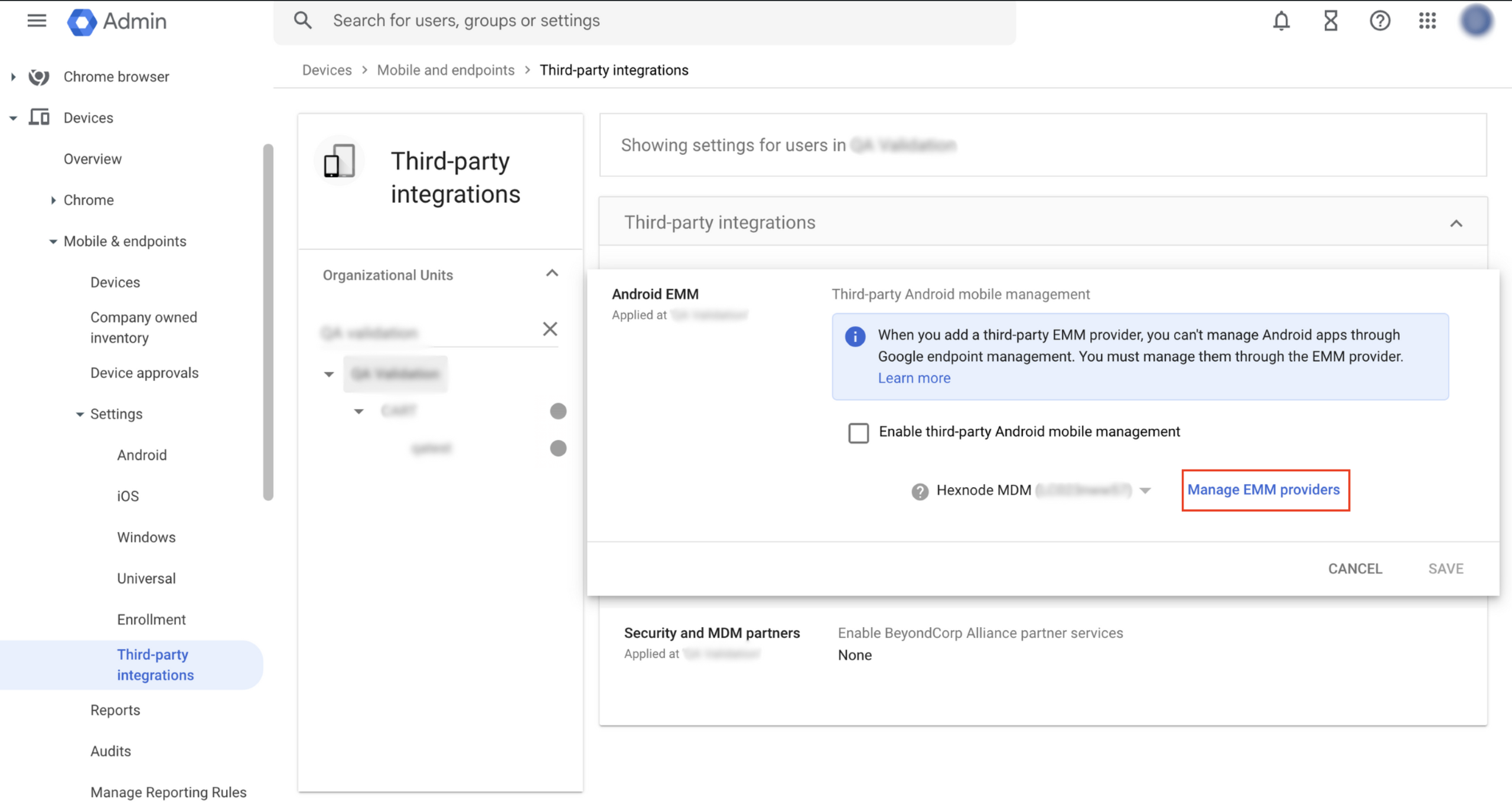

  2. Go to Devices > Mobile & endpoints > Settings > Third-party Integrations > Android EMM > Manage EMM providers.
  3. Choose your EMM provider and click Remove.

 Unbind emm provider from google admin console

Removing the EMM provider also removes the Android Enterprise account integrated with Hexnode. Further, the organizations may choose to either reconfigure the Android Enterprise account or disenroll from the Android Enterprise program using Hexnode UEM.

Re-enroll Android Enterprise account

To re-configure the Android Enterprise account:

  1. Sign in to Google Admin Console.
  2. Go to Devices > Mobile & endpoints > Settings > Third-party Integrations > Android EMM > Manage EMM providers.
  3. Click on Add EMM Provider.
  4. Click on GENERATE TOKEN, and copy the token.
  5. Log in to the Hexnode UEM console.
  6. Navigate to Enroll > Platform-Specific > Android > Android Enterprise.

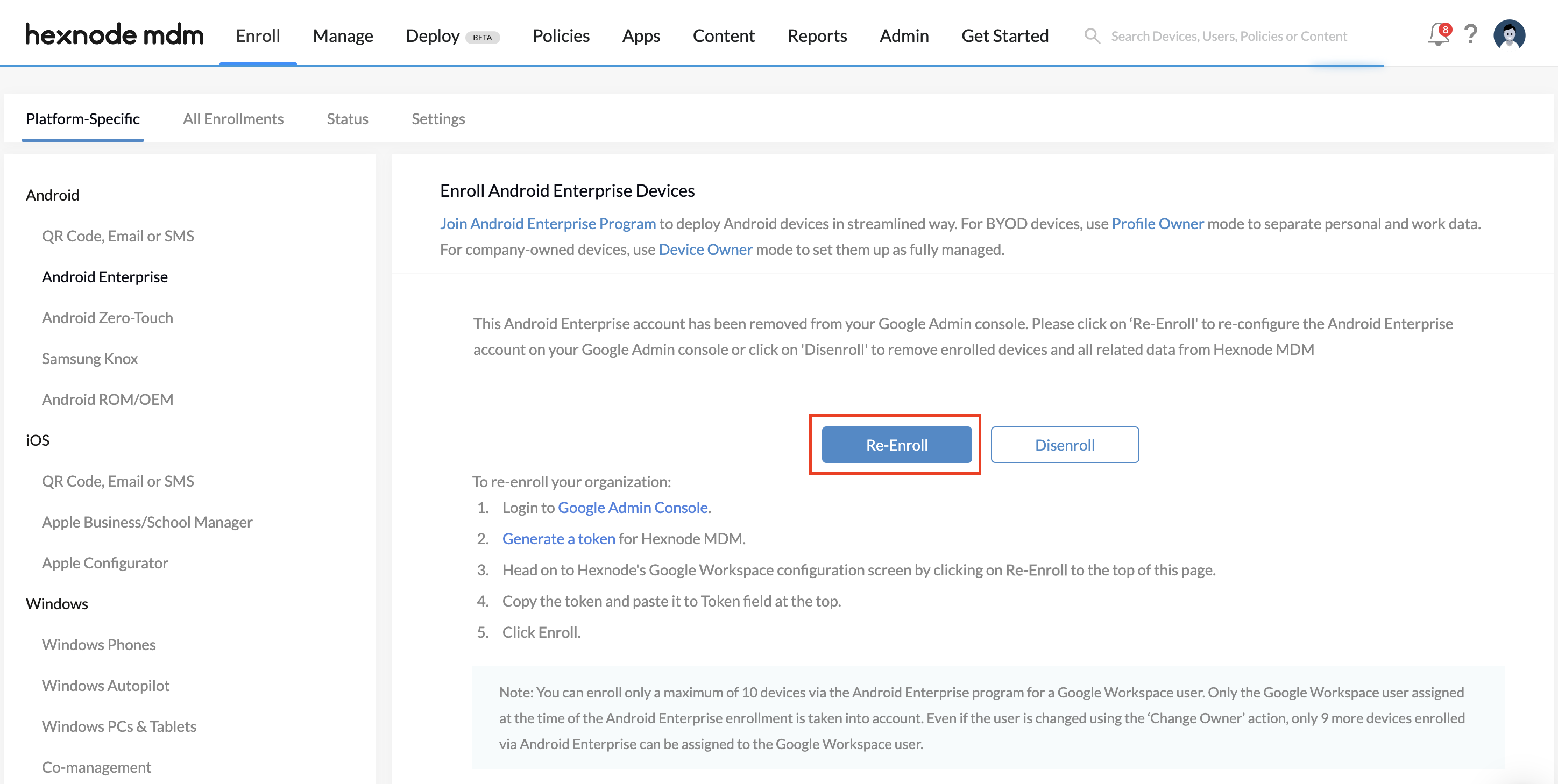

  7. Click on Re-Enroll.
  8. Paste the token in the Token field.
  9. Click Enroll.

Disenroll from Android Enterprise program

To disenroll from the Android Enterprise program after the EMM provider is removed from the Google Admin console:

  1. Log in to the Hexnode UEM console.
  2. Navigate to Enroll > Platform-Specific > Android > Android Enterprise.

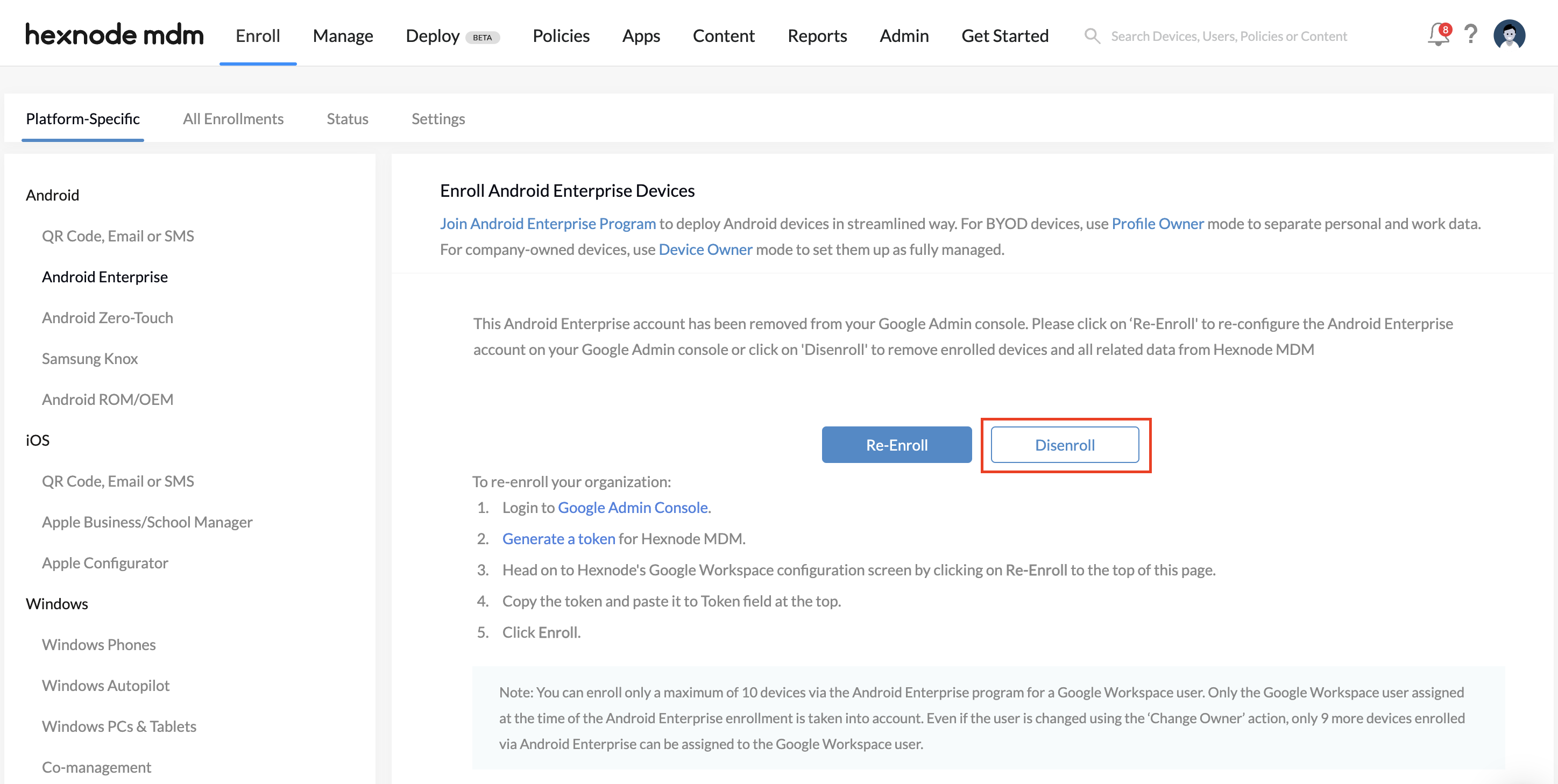

  3. Click on Disenroll. It removes all the devices enrolled in the Android Enterprise program and other related data from Hexnode UEM.

 Disenroll from Android Enterprise
