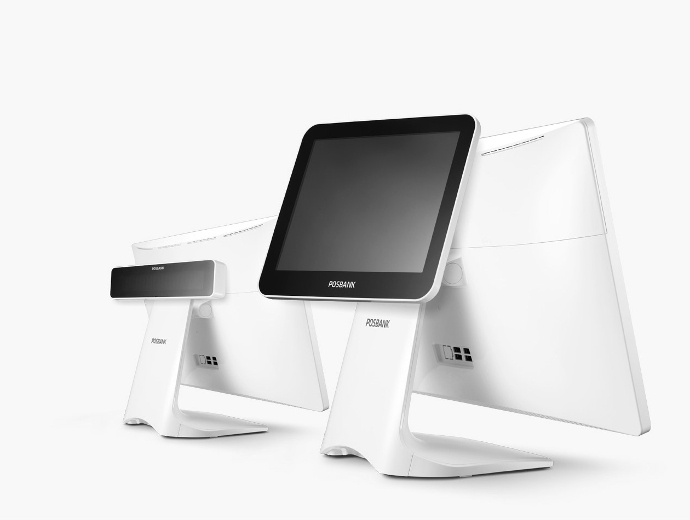

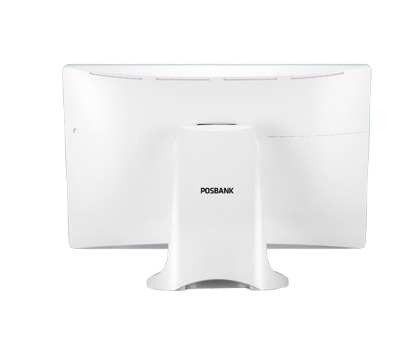

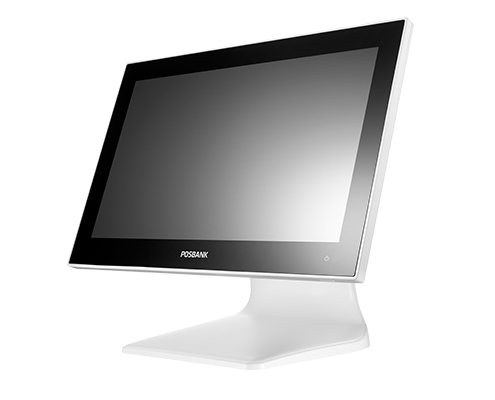

The POSBANK APEXA AW-1560 Android Terminal is built for cost-effective deployment and maximum operational stability across retail and hospitality venues. Its advanced, sleek slim-bezel design and commanding 15.6-inch touchscreen immediately modernize any counter space. Driven by the power-efficient Cortex-A17 Quad-Core processor, this terminal ensures consistent, reliable performance for all core Android-based POS applications, making speed-of-service transactions seamless on its highly responsive PCAP touch display (1366 x 768 resolution).
Durability and a quiet environment are central to its architecture. The system is engineered for highly optimized, silent operation, eliminating distracting noise—a crucial detail for customer-facing settings like cafes and high-end retail environments. Built for enterprise longevity, the APEXA features a durable, optional aluminum body and a compact footprint that preserves valuable counter space. Coupled with an intelligent I/O arrangement for simplified peripheral integration, this POS terminal is a reliable, low-maintenance solution designed to deliver continuous business uptime.
- Display
- 15.6″ TFT LCD, 1366 x 768, 400 nits
- PCAP touchscreen
- Optional 2nd display: 9.7″, 12.1″, 15″ LCD display (1024 x 768)/ VFD customer display
- OS Version
- Android 7/ 9
- Rugged
- No
- Processor
- Cortex-A17 quad-core (up to 1.8GHz)
- RAM Size
- 2GB (Max. 4GB)
- Storage Size
- 16GB (Max. 64GB)
- Power
- Adapter 12V, 5A
- NFC Support
- Yes
- Bluetooth
- Bluetooth v4.0
- Wi-Fi
- Wi-Fi 4 (802.11 a/b/g/n)
- I/O Ports
- Display:
- VGA (with power output) x 1
- USB:
- 6 x USB 2.0 (Rear 2, Back 4)
- 3 x Reserved (MSR, SCR, i-Button/touch controller), RJ-45
- Serial (COM):
- COM1: 9-pin, 5V/12V power output, BIOS configurable
- COM2–3: RJ-45, full signal
- COM4: RJ-11, TX/RX only, 12V power output (reserved for CDP)
- COM5: reserved for cash drawer port
- COM6: RJ-45, TX/RX only, 5V power output (reserved for MSR)
- Audio:
- Line-out x 1
- LAN:
- 1 x Gigabit Ethernet, RJ-45
- Power:
- DC-IN: 4 pin DIN jack
- Voice/ Audio
- Speaker 2 x 1W (stereo), HD audio codec
- Weight
- 5,300g
- Dimensions
- 400mm x 311mm x 210mm
