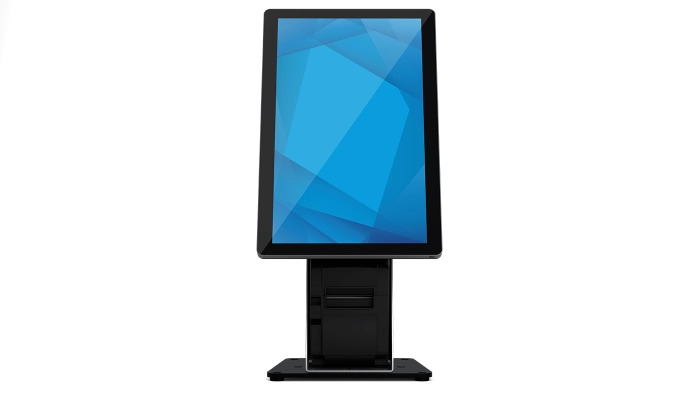

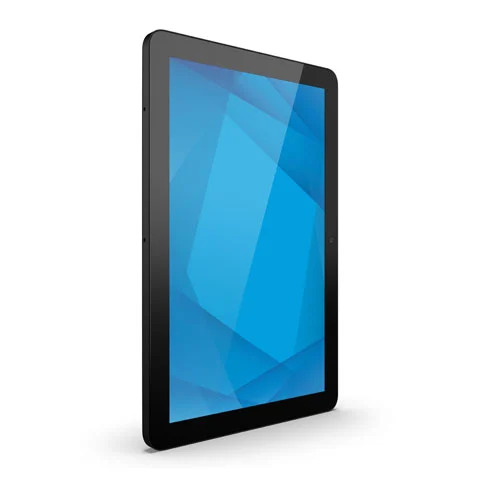

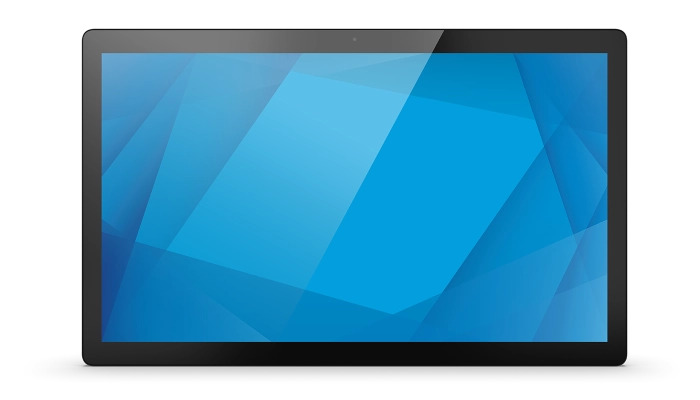

Enter the next era of public computing with the Elo 22-inch I-Series 5, a premium, high-performance interactive display engineered for demanding enterprise tasks. At its core, the powerful Qualcomm 6490 octa-core processor provides the speed and efficiency required for sophisticated environments like Point-of-Sale (POS) and complex self-service kiosks. Crucially, the embedded Applied AI accelerator future-proofs the platform, enabling fast, data-intensive operations while maintaining high energy efficiency.
Installation is now cleaner and more flexible than ever. The device features an expansive 21.5-inch Full HD display that immediately commands attention, paired with responsive TouchPro PCAP technology. Eliminate unnecessary power cables and streamline deployment with built-in Power-over-Ethernet (PoE) support, while Wi-Fi 6E ensures maximum network speed and reliability. Between the universal VESA mounting and the adaptable four Edge Connect ports for tool-less peripheral attachment, the I-Series 5 is ready to seamlessly integrate into any specialized setting, including advanced automation controls.
- Display
- 21.5” diagonal, Active Matrix TFT LCD (LED), 1920 x 1080 @ 60Hz, 250 nits
- TouchPro PCAP (Projected Capacitive), 10-touch, 215 nits
- OS Version
- Android 14
- Rugged
- No
- Processor
- Qualcomm Snapdragon QCS6490
- RAM Size
- 8GB
- Storage Size
- 64GB
- Power
- AC Input voltage: 100-240 VAC/ 50-60 Hz
- No main battery; only a lithium coin cell for Real-Time Clock
- NFC Support
- No
- Bluetooth
- Bluetooth v5.2
- Wi-Fi
- Wi-Fi 6E (802.11a/b/g/n/ac/ax)
- Camera (Front Only)
- 8MP
- I/O Ports
- 1x USB 3.0 support (900mA)
- Type-C USB output
- Micro SD slot
- GPIO
- Ethernet 1x LAN (Gigabit)
- DC in
- 4x micro-USB 2.0 Elo Edge Connect ports (support for 1.2A on one port and 500mA for the remaining three ports)
- Voice/ Audio
- 2x 1.5W speakers, 2x built-in digital microphones
- Weight
- 3.7kg
- Dimensions
- 524.8mm x 324.8mm x 29.7mm
