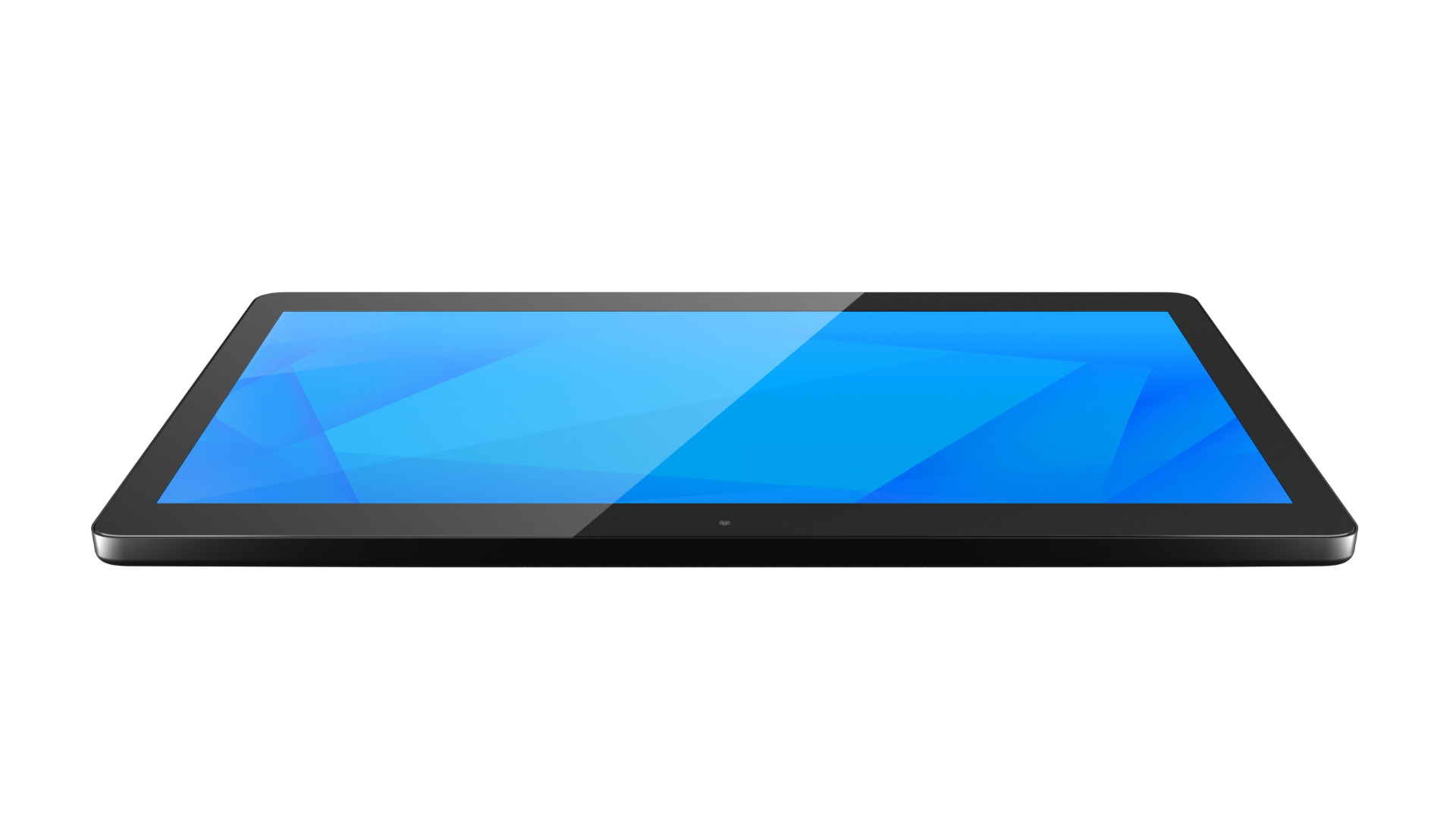

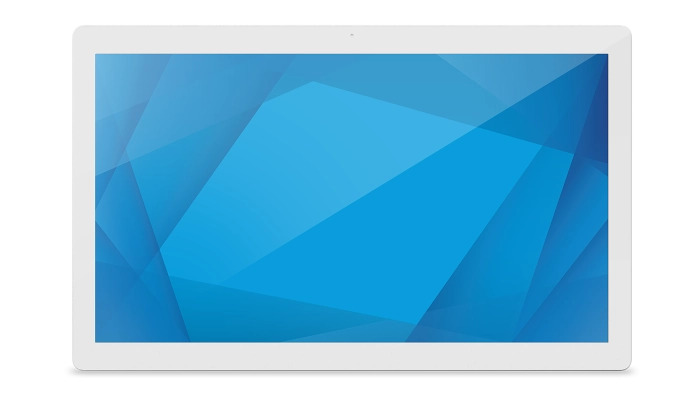

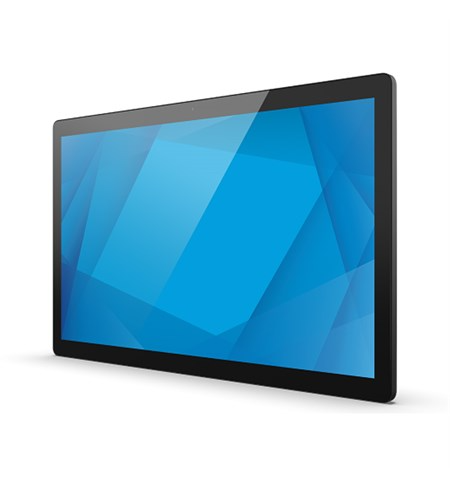

The Elo 22-inch Android I-Series 4 is the definitive platform for large-scale, interactive self-service. Designed for high-impact use, this powerhouse features a spacious 21.5-inch Full HD display with durable TouchPro PCAP technology, offering smooth, multi-touch input on a clean, glass-to-edge surface. Complex, continuous workflows are handled effortlessly by the Qualcomm Snapdragon octa-core processor, providing the reliable speed needed for constant video loops and demanding kiosk applications.

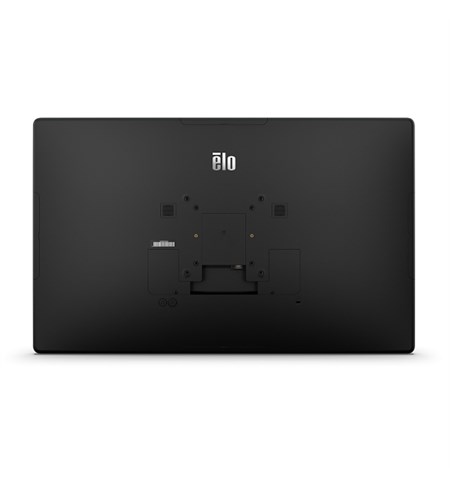

This industrial-grade device ensures maximum deployment flexibility right out of the box. It includes integrated 8MP camera and digital microphones for advanced video and voice applications. Future-proofing is key: the versatile Elo Edge Connect system provides crucial modularity, allowing rapid, tool-less attachment of peripherals directly to the frame. Secured by the Android OS and ready for robust VESA mounting, the 22-inch I-Series 4 is a complete solution designed to truly elevate large-format customer engagement.
- Display
- 21.5” diagonal, Active Matrix TFT LCD (LED), 1920 x 1080 @ 60Hz, 250 nits
- TouchPro PCAP (Projected Capacitive), 10-touch, 215 nits
- OS Version
- Android 10/ 12
- Rugged
- No
- Processor
- Qualcomm Snapdragon SDA660
- RAM Size
- 4GB
- Storage Size
- 64GB
- Power
- AC Input voltage: 100-240 VAC/ 50-60 Hz
- No main battery; only a lithium coin cell for Real-Time Clock
- NFC Support
- No
- Bluetooth
- Bluetooth v5.0
- Wi-Fi
- Wi-Fi 5 (Dual band: 2.4GHz, 5GHz)
- Camera (Front Only)
- 8MP
- I/O Ports
- 1x USB 3.0 support (900mA)
- Type-C USB output
- Micro SD slot
- GPIO
- Ethernet 1x LAN (Gigabit)
- DC in
- 4x micro-USB 2.0 Elo Edge Connect ports (support for 1.2A on one port and 500mA for the remaining three ports)
- Voice/ Audio
- 2x 0.8W speakers, 2x built-in digital microphones
- Weight
- 3.8kg
- Dimensions
- 524.8mm x 324.8mm x 29.7mm
